Product Description

SAMCOM CP-100 has been designed for the consumer level users, with a ultra-compact and lightweight body which specially for girls and children.

It is simple to use, delivers clear and reliable communications for restaurants, super market, retail stores, school camps, movie theaters, bowling alleys, tourism and other short range business radio service.

Thanks to a crisp loud speaker giving 750m Watts of audio output the Model CP-100 is still much better to hear in noisy environments than its competitors.

Voice annunciation of channel number allows simple operation.

The radio comes complete with a high capacity (3.7V, 1500mAh Li-ion) battery which makes 15 hours working time for great productivity when the battery save feature is on.

Main Features

1 - Ultra-compact and lightweight design

2 - Standard 50 CTCSS tones & 104 DCS codes

3 - High / low TX power option

4 - Battery saver

5 - Low battery alert

6 - Time-out Timer

7 - Inbuilt VOX for hands-free communications

8 - Voice annunciation

9 - Squelch level adjustable

10 - Roger beep tone

11 - High capacity 1500mAh battery pack

12 - Vertex 1 Pin jack for ext. speaker microphone

Talking Range

Note: The maximum range depends on terrain conditons and may vary. The range can be reduced when used inside a car or a metallic construction.

Ideal For



Standard Accessories



Optional Accessories



Specifications

General

Frequency Range	400 - 520 MHz
Channel Capacity	16 Channels
Channel Spacing	12.5 / 25 KHz
Operating Voltage	3.7 V DC
Dimensions	102 x 55 x 30 mm
Weight with battery	130 g

Transmitter

TX Power	2W
Modulation	F3E
Spurious & Harmonics	-60 dB
Transmit Current Drain	< 1000 mA
Modulation Deviation	< 5 KHz
Audio Distortion	< 3%

Receiver

Sensitivity (12 dB SINAD)	0.25 μV @ 25 KHz
Audio Distorion	< 5%
Receive Current Drain	< 100 mA
Intermodulation Rejection	50 dB
Audio Output @ < 3% Distorion	750m Watt @ 16 ohms

Warranty Information

 The Model CP-100 radio is covered by a 24 months warranty against defective workmanship or defective parts. It does not cover damage caused by misuse, water ingress, battery leakage or negligence.

SAMCOM Ham Two Way Radio AP-100DS

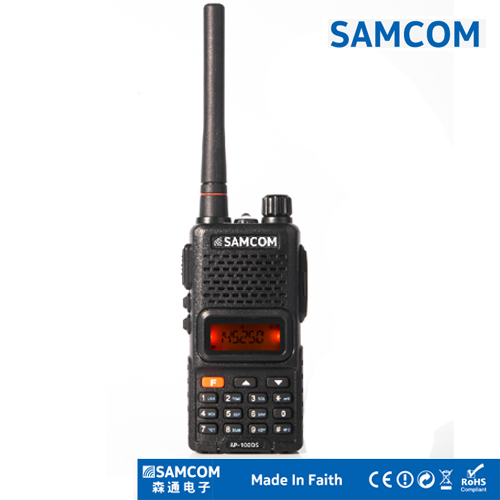

SAMCOM Ham Radio AP-100DS

Product Description

Product Description

SAMCOM Ham Radio AP-100DS has been designed for the professional user, with a rugged and robust housing which meets MIL STD 810 F for ingress and shock resiliance. The IP55 rating against dust and water ingress makes the ModelAP-100DS usable in the toughest of environments.

Lightweight, compact and fitting comfortably in the hand, not only is the AP-100DS tough - it is smart too, with inbuilt features for Personal Protection Equipment such as Lone Worker functions and emergency alarm - all programmable to allow ultimate flexibility and control.

Thanks to a crisp loudspeaker giving 1 Watt of audio output the AP-100DS is much better to hear in noisy environments than its competitors. The radio has a standard “M1” fit audio accessory connector and there is full compatibility with Motorola range audio accessories.

Voice annunciation of channel number allows simple operation.

The radio comes complete with a high capacity (1500mAh Li-ion) battery and single way quick desktop charger.

Model AP-100DS radio has been designed to maximize performance and improve transmission range in the field. It is recommended to you do not use the radios closer than 2 meters apart, to avoid interference.

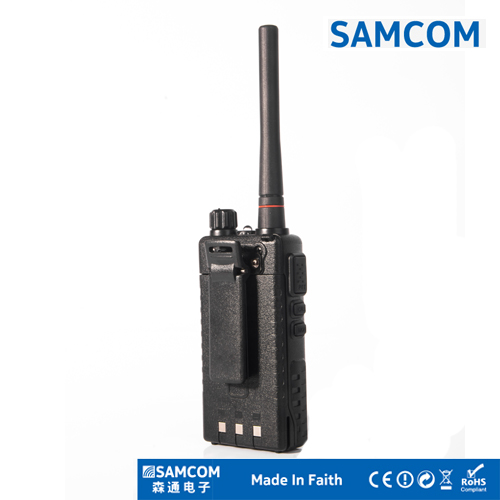

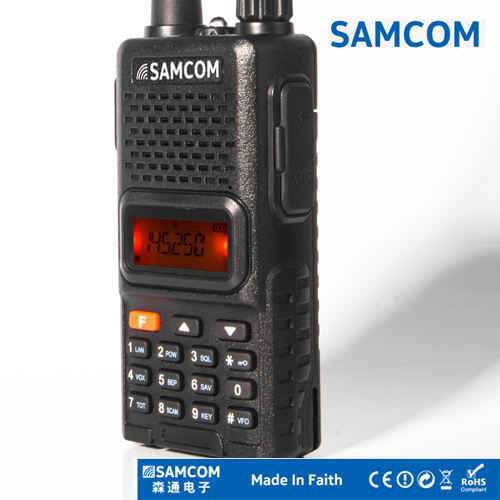

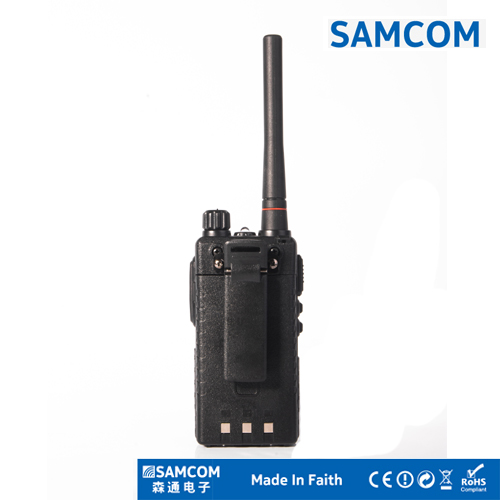

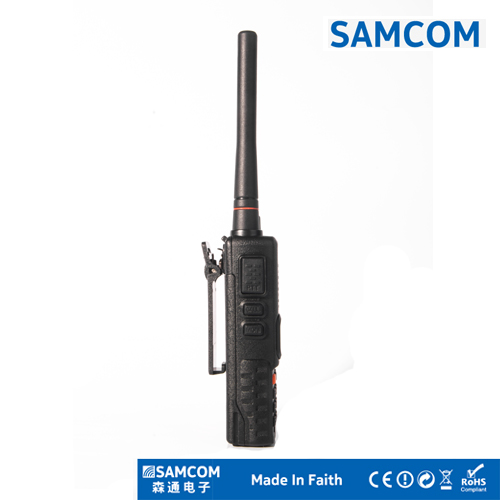

Detail Images

Main Features

1-Compact,ultra-small size but build tough
2-99 channel storage
3-CTCSS&DCS encode and decode
4-high/low TX power selectable
5-LED flashlight
6-Battery save
7-FM radio receiver
8-Chinese/English voice prompt
8-Wide/narrow bandwidth selectable
9-PC programmable
10-1500mAh Li-ion battery pack

Talking Range

Note: The maximum range depends on terrain conditons and may vary. The range can be reduced when used inside a car or a metallic construction.

Ideal For

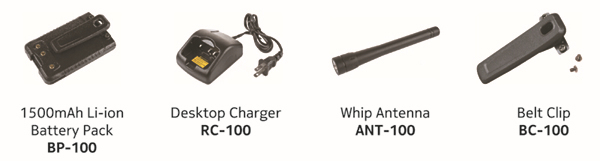

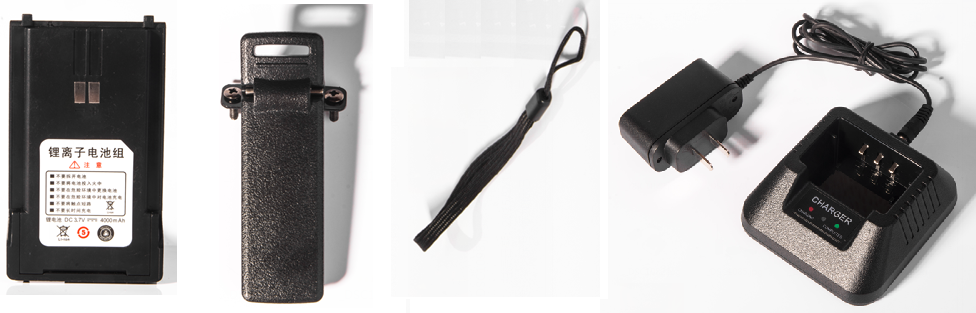

Standard Accessories

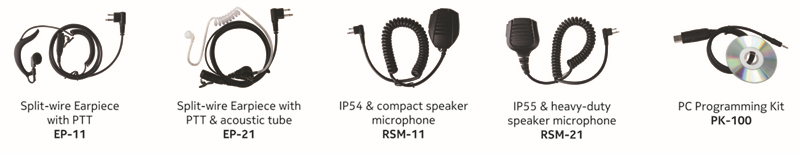

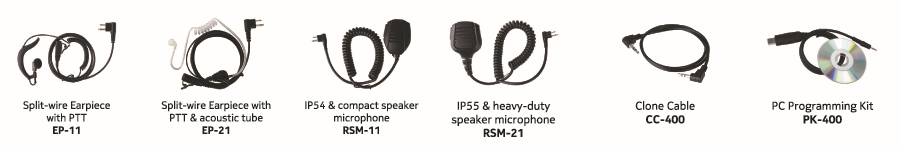

Optional Accessories



Specifications

General Of Ham Radio

Frequency Range	136-174MHz/400-430MHz/440-470MHz
Channel Capacity	99 Channels
Channel Spacing	12.5
Operating Voltage	7.4 V DC
Dimensions	100 x 56 x 32 mm
Weight with battery	185 g

Transmitter Of Ham Radio

TX Power	0.5 / 4 Watts
Frequency Stability	< 1.5 ppm
Spurious & Harmonics	-36 dBm for f < 1 GHz; -30 dBm for f > 1 GHz
FM Hum & Noise	-45 dB
Modulation Deviation	< 2.5 KHz
Adjacent Channel Power	70 dBc
Audio Frequency Response	+ 1 ~ -3 dB (0.3 - 3 KHz)
Audio Distortion	< 3%

Receiver

Sensitivity (12 dB SINAD)	-122 dBm
Adjacent Channel Selectivity	70 dB
Audio Distortion	< 5%
Radiated Spurious Emissions	< -54 dBm
Intermodulation Rejection	70 dB
Audio Output @ < 3% Distorion	1 Watt @ 8 ohms

Warranty Information

The Model Ham Radio AP-100DS radio is covered by a 24 months warranty against defective workmanship or defective parts. It does not cover damage caused by misuse, water ingress, battery leakage or negligence.
